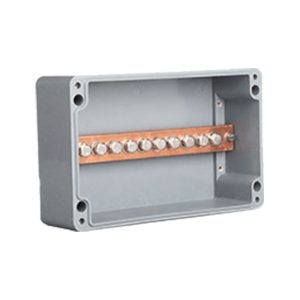

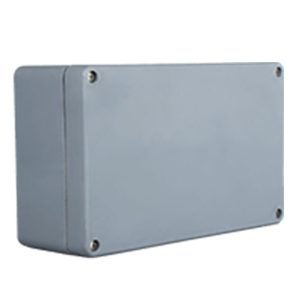

Battery Combiner Box – 800V 1ka Battery Busbar

A busbar is a conductive metal strip or bar that is used to distribute electrical power within a system. In the context of batteries, a busbar is often employed to connect multiple batteries in series or parallel configurations, creating a battery bank. Here’s how a busbar works in the context of batteries:

1. Series Connection:
   • When batteries are connected in series, the positive terminal of one battery is connected to the negative terminal of the next battery.
   • A busbar is used to facilitate this connection. It acts as a conductive bridge, allowing the flow of electrical current between the positive and negative terminals of each battery in the series.
2. Parallel Connection:
   • In a parallel connection, the positive terminals of multiple batteries are connected together, and the negative terminals are connected together separately.
   • The busbar, again, serves as the connection point for these terminals. It ensures that the electrical current can flow between the batteries that are connected in parallel.
3. Distribution of Power:
   • The busbar serves as a central point for power distribution within the battery bank. It efficiently transfers electrical energy between the batteries and allows the entire system to function as a single unit.
4. Reducing Resistance:
   • Busbars are typically made of highly conductive materials, such as copper or aluminum, to minimize electrical resistance. This helps to ensure efficient power transfer and reduces the loss of energy as heat.
5. Securing Connections:
   • Busbars often come with connection points or terminals where cables can be securely attached. This ensures a reliable and stable connection between the batteries and the external electrical system.
6. Modularity and Scalability:
   • The use of busbars allows for modularity and scalability in battery systems. Additional batteries can be easily added or removed, and the busbar facilitates these modifications by providing a standardized connection point.
7. Heat Dissipation:
   • Busbars also contribute to the dissipation of heat generated during the flow of electrical current. Efficient heat dissipation is crucial for maintaining the optimal performance and longevity of the batteries.

In summary, a busbar is a critical component in battery systems, enabling the connection, distribution, and efficient transfer of electrical power between multiple batteries. It plays a key role in creating a unified and functional battery bank, whether for automotive, renewable energy, or other applications.
