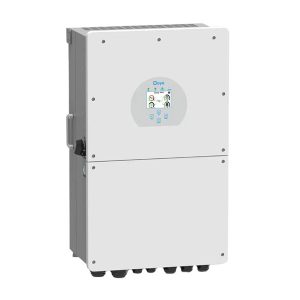

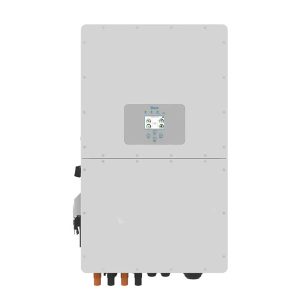

Deye 30kW Hybrid 3-Phase Inverter Introduction

The Deye 30kW Hybrid 3-Phase Inverter is a versatile, multi-functional device that combines the functions of an inverter, solar charger, and battery charger into one compact system. It ensures an uninterrupted power supply and offers flexibility with its user-friendly LCD display, which allows for easy configuration of battery charging, AC/solar charging, and input voltage options tailored to various applications. This Deye 30kW Hybrid 3-Phase Inverter offers a robust solution for commercial applications, providing seamless integration with solar panels and energy storage systems for reliable and efficient power management.

Key Features of the Deye 30kW Hybrid 3-Phase Inverter:

• 230V/400V Three-Phase Pure Sine Wave Output: Ideal for stable and efficient power delivery.
• Self-Consumption and Grid Feed-In: Prioritizes self-consumption while allowing excess energy to be fed into the grid.
• Auto-Restart Function: Automatically restarts when AC power is restored.
• Configurable Supply Priority: Choose whether the system prioritizes battery or grid supply.
• Multiple Operating Modes: Supports on-grid, off-grid, and UPS operation modes for flexible power management.
• Customizable Battery Charging: Battery charging current and voltage can be adjusted via the LCD to suit specific applications.
• AC/Solar/Generator Priority Settings: These are programmed through the LCD for customized power management.
• Generator Compatibility: Works seamlessly with mains voltage or generator power.
• Comprehensive Protection: Offers protection against overload, over-temperature, and short circuits.
• Smart Battery Charger: Designed to optimize battery performance for longevity and efficiency.
• Grid Power Limiting Function: Prevents excess power from overflowing to the grid.
• WIFI Monitoring: Supports remote monitoring through a built-in WIFI feature.
• MPPT Charging: Includes two strings for one MPPT tracker and one string for another MPPT tracker, providing efficient solar energy management.
• Advanced MPPT Charging Stages: Configurable three-stage MPPT charging optimizes battery health and performance.
• Time of Use Function: Allows for time-based power management.
• Smart Load Function: Automatically manages loads to optimize power usage.

Deye 30kW Hybrid 3 Phase Inverter Specifications

Model: SUN-30K-SG01HP3-EU-BM3

Deye 30kW Hybrid 3-Phase Inverter Battery Input Data

• Battery Type: Li-Ion
• Battery Voltage Range: 160-800V
• Max Charging Current: 50+50A
• Max Discharging Current: 50+50A
• Number of Battery Inputs: 2
• Charging Strategy: Self-adaptation to BMS (Battery Management System)

Deye 30kW Hybrid 3-Phase Inverter PV String Input Data

• Max DC Input Power: 39,000W
• Max DC Input Voltage: 1,000V
• Start-Up Voltage: 180V
• MPPT Voltage Range: 150-850V
• Full Load DC Voltage Range: 360-850V
• Rated DC Input Voltage: 600V
• PV Input Current: 36A + 36A + 36A
• Max PV Short Circuit Current (Isc): 55A + 55A + 55A
• Number of MPPT Trackers: 3
• Number of Strings Per MPPT Tracker: 2+2+2

Deye 30kW Hybrid 3-Phase Inverter AC Output Data

• Rated AC Output Power / UPS Power: 30,000W
• Max AC Output Power: 33,000W
• Peak Power (Off-Grid): 1.5x rated power for 10 seconds
• Rated AC Output Current: 45.5/43.5A
• Max AC Current: 60A
• Max Continuous AC Passthrough: 150A
• Generator Input/Smart Load/AC Couple Current: 45.5A / 150A / 45.5A
• Power Factor: 0.8 leading to 0.8 lagging
• Output Frequency and Voltage: 50/60Hz, 3L/N/PE 220/380, 230/400Vac
• Grid Type: Three Phase
• DC Injection Current: <0.5%1n

Deye 30kW Hybrid 3-Phase Inverter General Data

• Operating Temperature Range: -40°C to 60°C (Derating above 45°C)
• Cooling: Intelligent air cooling
• Noise Level: ≤45 dB
• Communication with BMS: RS485; CAN
• Weight: 75 kg
• Dimensions: 527 mm (W) × 894 mm (H) × 294 mm (D)
• Protection Level: IP65
• Installation Style: Wall-mounted
• Warranty: 5 years
