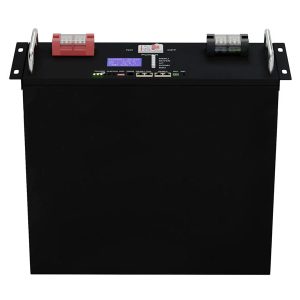

Magneto 9.6kWh Rack Mount Lithium LiFePO4 Battery

The Magneto 9.6kWh LiFePO4 Rack Mount Battery is a high-performance, long-lasting energy storage solution designed for both residential and commercial applications. Built with Lithium Iron Phosphate (LiFePO4) chemistry, this battery offers superior safety, fast charging, and longer cycle life compared to traditional lead-acid batteries.

Magneto 9.6kWh Rack Mount Battery Key Features:

• Safety First: The advanced Battery Management System (BMS) ensures that the battery is protected from overcurrent, overvoltage, and thermal runaway.
• High Performance: The Magneto 9.6kWh battery offers excellent performance with a continuous discharge current of 100A and a maximum charge current of 50A.
• Extended Lifespan: Designed for over 16 years of use, it supports 3000 cycles at 100% Depth of Discharge (DoD) and up to 6000 cycles at 80% DoD, ensuring a long-lasting power solution.
• Environmental Protection: Non-toxic, pollution-free, and safe, this battery is eco-friendly and ideal for renewable energy systems.
• Versatile Installation: Compact and lightweight, the rack-mountable design makes installation easy and saves valuable space in energy storage systems.
• Parallel Connection: The Magneto 9.6kWh battery allows for up to 5 units to be connected in parallel, providing scalable energy storage as your needs grow.
• Efficiency: With a round-trip efficiency of 95%, the Magneto battery maximizes the energy output, reducing losses and improving overall system efficiency.

Magneto 9.6kWh Rack Mount Battery Specifications:

• Model: IMS306 – 48V 200Ah Rack Mount
• Total Capacity: 9.6kWh
• Nominal Voltage: 48V
• Max. Continuous Charge Current: 50A (2C charge rating)
• Max. Continuous Discharge Current: 100A (1C discharge rating)
• Discharge Cut-Off Voltage: 37.5V
• Operating Temperature:
  • Charging: 0°C to 45°C
  • Discharging: -20°C to 60°C
  • Storage: 0°C to 40°C
• Round Trip Efficiency: 95%
• Cycle Life: 3000 cycles at 100% DoD, 6000 cycles at 80% DoD
• Cooling Method: Natural
• Dimensions (W x D x H): 482 x 500 x 280 mm
• Weight: 90kg
• Shell Material: Metal
• Parallel Connection: Up to 5 sets
• Control Interface: RS232, RS485, CAN Bus
• Design Lifespan: 16 years or >6000 cycles at 80% DoD
• Warranty: 10 Years or 6000 cycles for 80% DoD

Magneto 9.6kWh Rack Mount Battery Ideal for:

• Solar Energy Storage: Reliable and safe storage for solar energy, ensuring you have power when you need it most.
• UPS Systems: Perfect for providing backup power during outages.
• Renewable Energy Systems: A must-have for environmentally conscious consumers and businesses.

Why Choose Magneto 9.6kWh LiFePO4 Battery:

• Longer Lifespan: More efficient and durable than lead-acid batteries.
• Faster Charging: Recharge in less time, ensuring you’re never without power.
• Eco-Friendly: Non-toxic, pollution-free, and ideal for renewable energy setups.

For more information, technical support, or to request a quotation, get in touch with our team today!
